- Pulse1-24V
- Full compliance with ISO 7637-2.2004, ISO 7637-2.2011, ISO 7637-3.2007, ISO 16750-2.2010
- Load dump suppressor for pulse 5b
- Compact modular cabinet
- Output terminals provided at a height of 50mm above the floor level as specified in the ISO 7637-2 standard
- Two types of CDNs available (60 V/50 A and 60 V/100 A)
- Dedicated software for condition setting and tester control
- JASO D001-94 pulse unit offered as an optional module
Product Overview

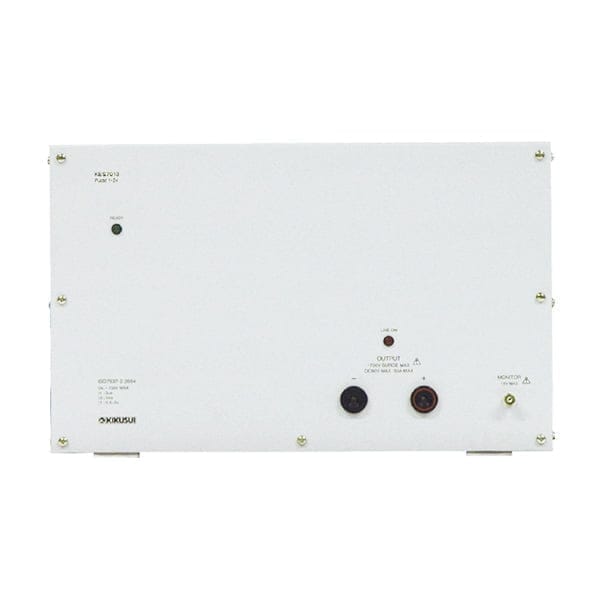

KES7711A, KES7713B and KES7714 generate test pulses 1 required by the ISO and SAE standards. Test pulse 1 is used to simulate the transient phenomenon that occurs when the power supply is cut off from the inductive load.
Specifications
Specifications
Open in a new window
| Model | KES7713B | KES7714 |
|---|---|---|
| Pulse module | External-connect type | |
| Peak voltage (Us) | ±20 V to ±700 V, in steps of 0.1 V | |
| Output impedance (Ri) | 20 Ω(SAE), 50 Ω(ISO) | |
| Rise time (tr) | 1 μs (+0 μs, -0.5 μs)(SAE), 3 μs (+0 μs, -1.5 μs)(ISO) | |
| Pulse width (td) | 1000 μs ± 200 μs at No Load / 50 Ω Load | |
| Repetition interval (t1) | 0.5 s to 99 s, in steps of 0.1 s | |
| DC cut time (t2) | 1 ms to 200 ms, in steps of 0.1 ms | |
| Surge delay time (t3) | Less than 100 μs | |
| CDN capacity | DC60Vmax 50Amax | DC60Vmax 100Amax |
| Input voltage | 100 VAC to 240 VAC 50/60 Hz | |
| Power consumption | 200VA | |
| Dimensions | 440(17.32”)W×280(11.02”)H×595(23.42”)D mm | |
| Weight | Approx. 40 kg(88.18lbs) | Approx. 42 kg(92.59lbs) |
■ DC cut time can be set within a range of 1 ms to 200 ms. ■ Since it also outputs positive polarity waveforms whose polarity has been reversed, it supports not only ISO standards but also independent standards of automobile manufacturers as well. ■ Output impedance： Since 20 W and 50 W can be selected, it supports ISO7637-2.2004 standards and SAE J1113 standards.
