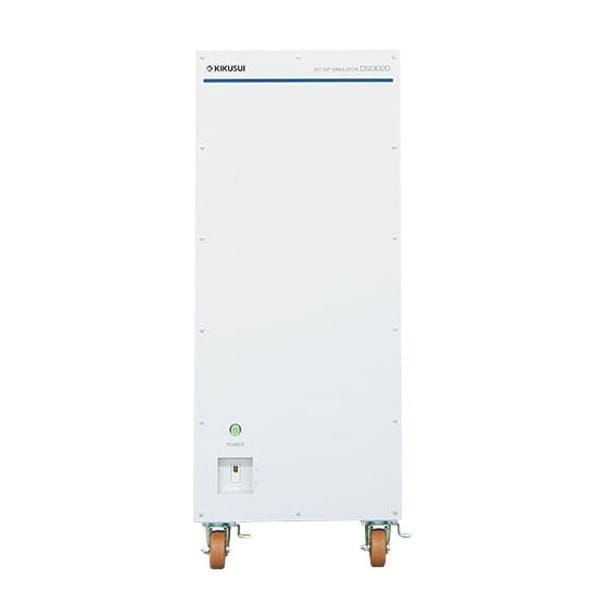

Dip Simulator
DSI Series
価格お問い合わせ
- DSI1020: Compatible with single-phase 2-wire
- DSI3020: Supports single-phase 2-wire, single-phase 3-wire, 3-phase 3-wire, and 3-phase 4-wire
- Fast voltage switching (rise time 1μs~5μs)
- Supports voltage dips (0%, 40%, 70%, 80%)
- Supports phase voltage/line voltage dip test*.
- Supports a maximum line input voltage of 500 V (DSI3020)
Only DSI3020 supports line-to-line voltage dip test.
| Image | SKU | 電源方式 | 最大電流（各相） | 標準価格 | WEBかんたんお見積り |
|---|---|---|---|---|---|
 | DSI1020 | 単相 | 16A | オープン価格（お問い合わせください） | |
| DSI3020 | 単相／三相 | 16A | オープン価格（お問い合わせください） |
Line-up
| Image | SKU | 電源方式 | 最大電流（各相） | 標準価格 | WEBかんたんお見積り |
|---|---|---|---|---|---|
| DSI1020 | 単相 | 16A | オープン価格（お問い合わせください） | |
| DSI3020 | 単相／三相 | 16A | オープン価格（お問い合わせください） |
Product Overview
For the Voltage dips, short interruptions and voltage variations immunity test system
complying with IEC61000-4-11 (2004)
The DSI Series is an optional unit for configuring a “Voltage Dip/Short Interruption and Voltage Variation Immunity Test System” that complies with the IEC61000-4-11 Ed3.0 (2020) standard. It can be used in combination with our AC power supply PCR-LE/LE2 series. It supports high-speed voltage switching (rise time 1 μs to 5 μs), voltage dips (0%, 40%, 70%, 80%), and phase voltage/line voltage dip tests required by the test.
*Quick Immunity Sequencer (model: SD009-PCR-LE/WE) is required.*Connecting cable with PCR-LE/LE2 series must be prepared by the customer.
The DSI3020 supports the voltage dip testing of 230V and 400V linevoltage systems required for the three-phase three-wire, and the three-phase four-wire.
| Model | Maximum current (per phase) | Wiring configuration | DIP level | Compliant standards | Remarks | |
|---|---|---|---|---|---|---|
| Single phase | Three-phase | |||||
| DSI1020 * | 16A | ✓ | – | 0／40／70／80% | IEC61000-4-11 Ed3.0(2020) | For Single Phase only |
| DSI3020 * | 16A | ✓ | ✓ | 0／40／70／80% | IEC61000-4-11 Ed3.0(2020) | For Single Phase or Three Phase |
* Excluding the PCR500LE, PCR1000LE and PCR1000WEA, since those model do not have enough output capacity.

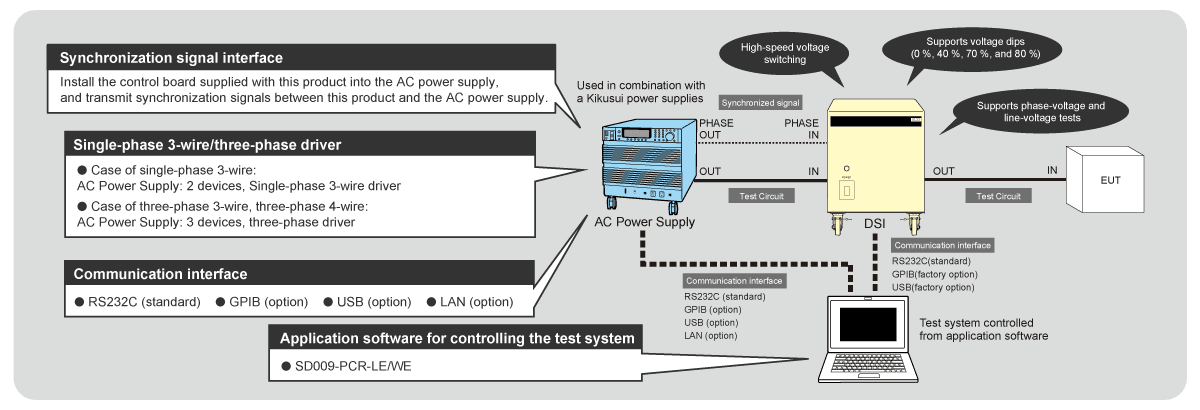

Voltage Dip/Instantaneous Power Loss and Voltage Fluctuation Immunity Test Systems
*The diagram is an image. Actual product may differ. *Multiple AC power supplies are required for single-phase 3-wire, 3-phase 3-wire, and 3-phase 4-wire outputs.
